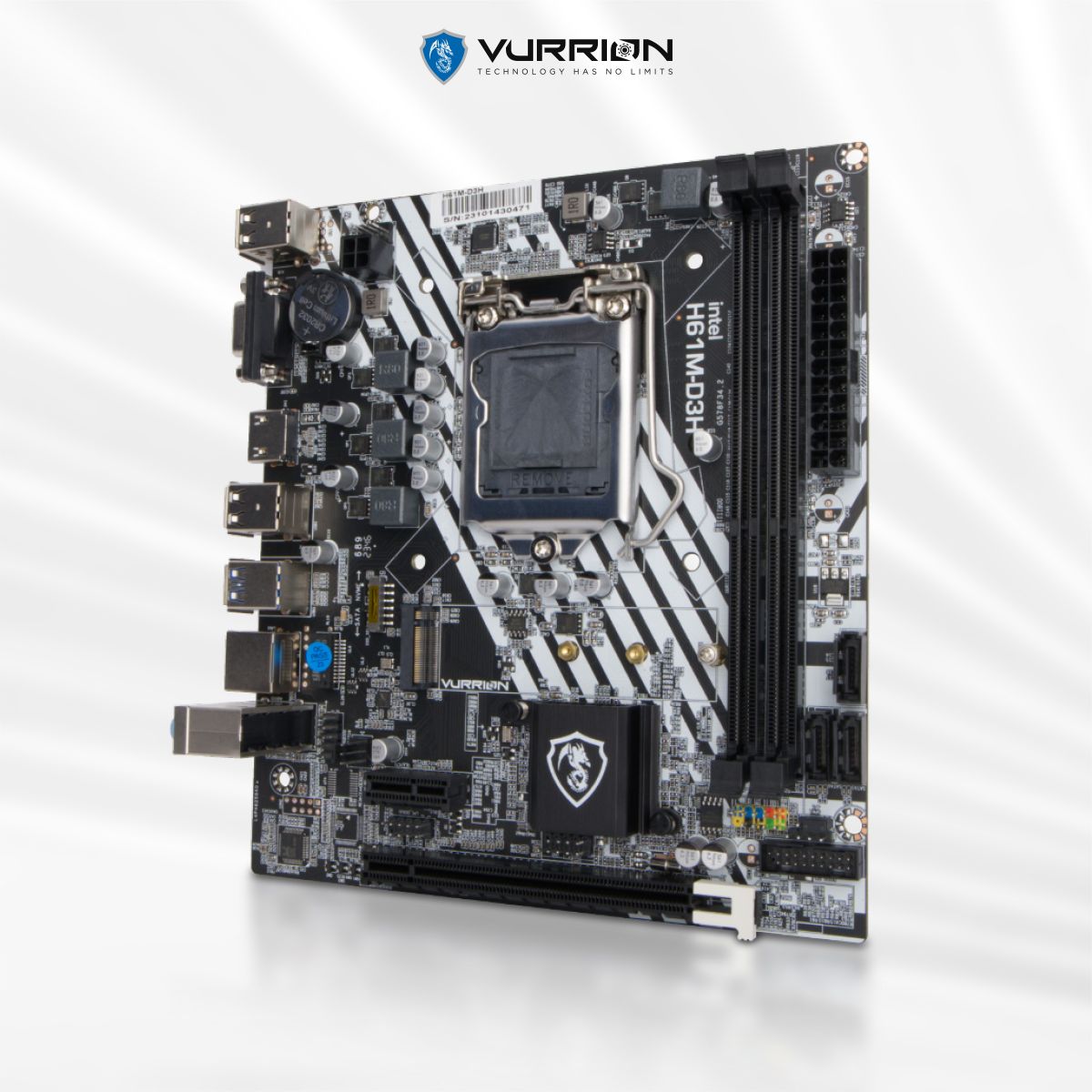

ESSENTIAL H61M-D3H
H61M-D3H adalah motherboard Intel Essential yang dirancang untuk sistem
komputasi dasar hingga penggunaan harian. Mengutamakan kestabilan dan
kompatibilitas untuk kebutuhan kantor, pendidikan, dan home PC.
Reliable solution for everyday computing needs.
Product Overview
Features
Mendukung prosesor Intel dengan socket LGA 1155.
Kompatibel dengan prosesor Intel Core generasi ke-2 dan ke-3.
Mendukung memori DDR3 dual slot untuk performa sistem yang stabil.
Mendukung penyimpanan M.2 NVMe untuk peningkatan responsivitas sistem.
Koneksi jaringan cepat dan stabil hingga 1Gbps.
Mendukung perangkat penyimpanan SATA dengan kecepatan transfer hingga 3Gb/s.
Description
 |
 |
 |
 |

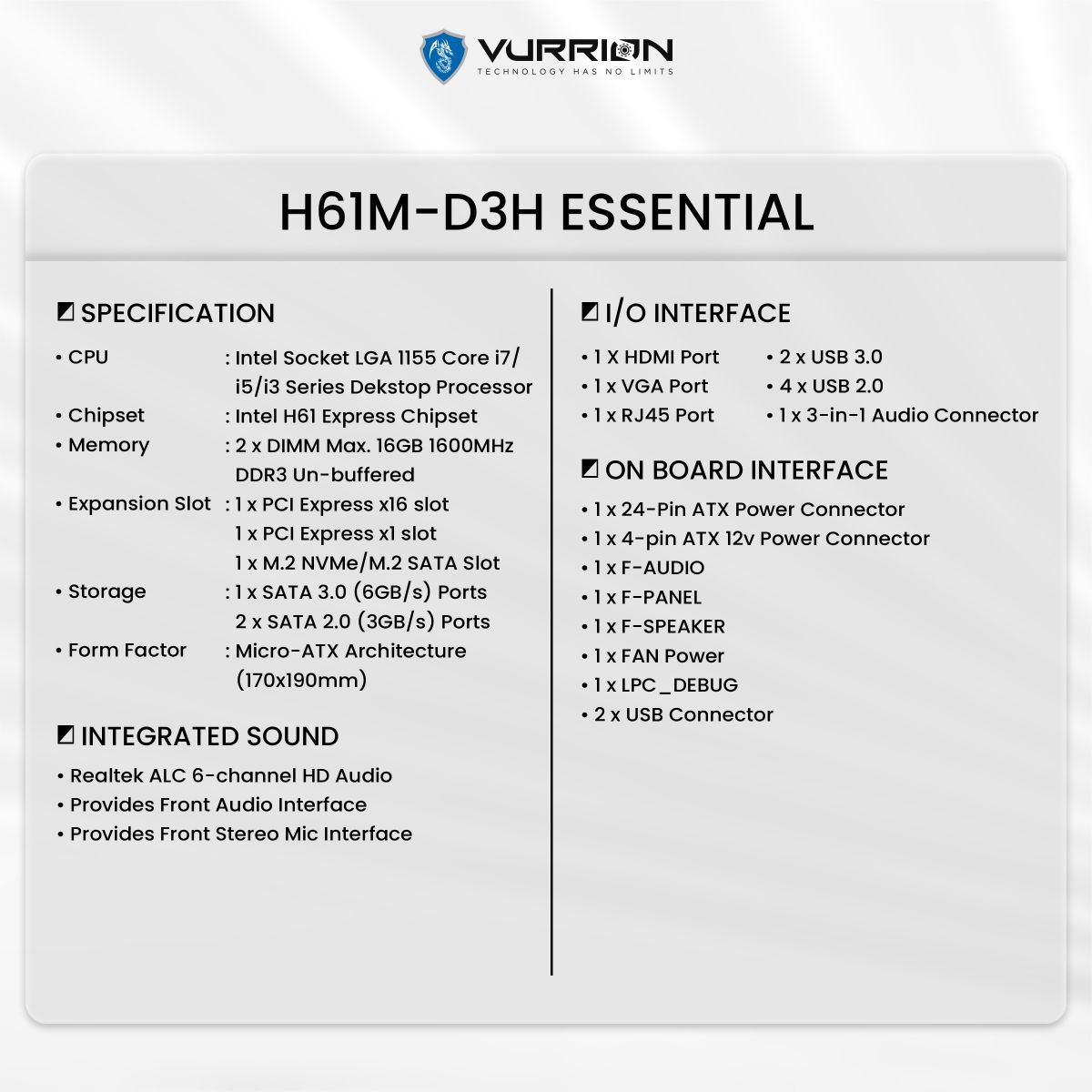

Tech Specs
| CPU | Intel Socket LGA 1155 Core 2th&3th Series desktop processor |
| Chipset | Intel H61 |
| Memori | 2X DIMM max.16GB DDR3 un-buffered |
| Slot Expansi | 1X PCI Express x16 slot |
| 1 X M.2 Slot | |
| 1X PCI Express x1 slot | |
| Storage | 1 X SATA 3.0 (6GB/s) ports |
| 2 X SATA 2.0 (3GB/s) ports | |
| Lan | Gigabit LAN Controller(s) |
| Audio | Realtek ALC 6-Channel HD Audio |
| I/O Internal | 1 x CPU Fan connector(s) (4 -pin) |
| 1 x Chassis Fan connector(s) (4 -pin) | |
| 1 x 24-pin ATX Power connector(s) | |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x Front panel connector(s) | |
| 1 x Front panel audio connector(s) | |
| 1 x Internal speaker connector(s) | |
| 1 x Clear CMOS jumper(s) | |
| 2 X F-USB 2.0 / USB 3.0 | |

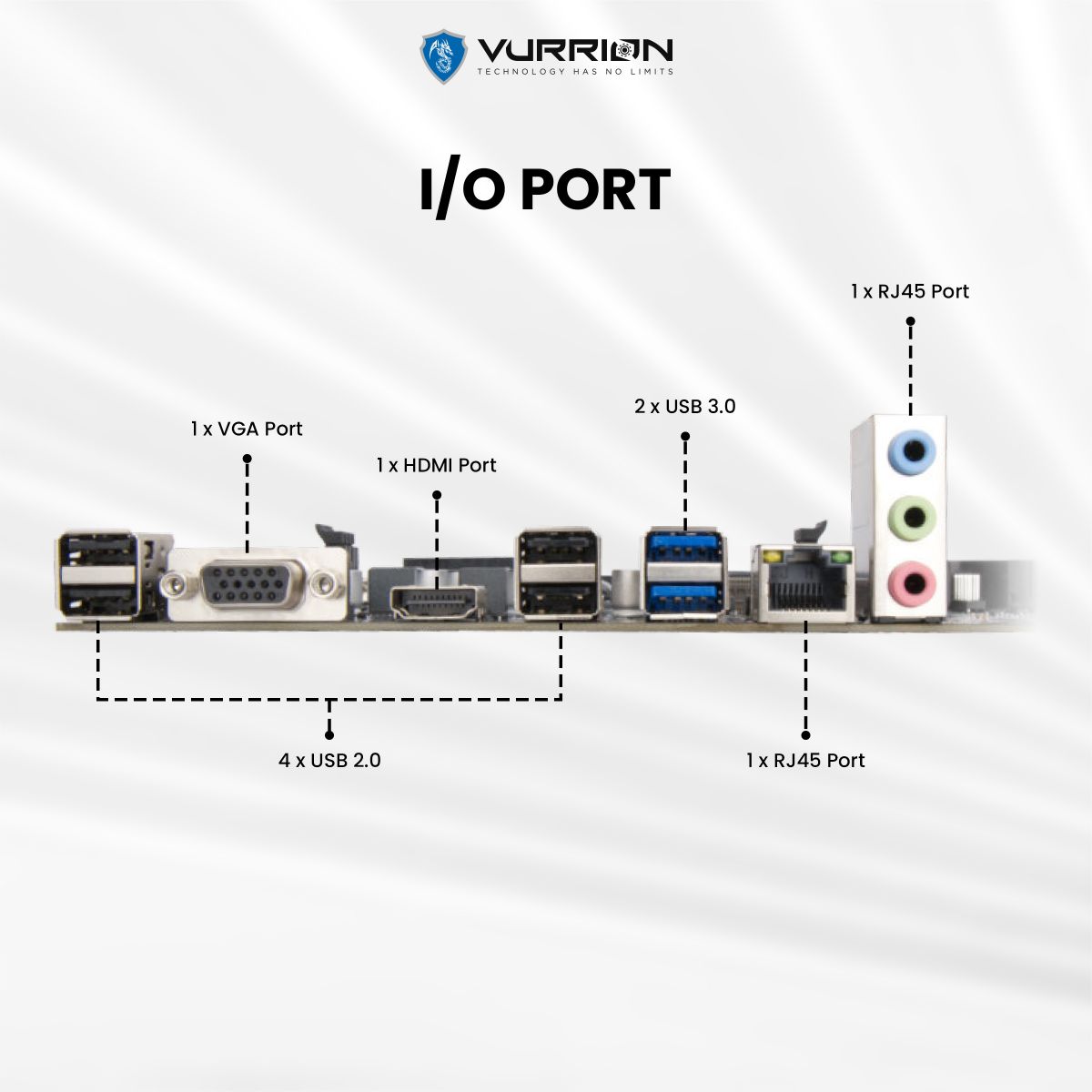

| I/O Port Back | 1 x VGA |
| 1 x HDMI | |
| 1 x LAN (RJ45) port(s) | |
| 4 x USB 2.0 | |
| 2 x USB 3.0 | |
| 1 x 3 Audio jack(s) | |
| Form Factor | Micro Atx architecture ( 170 X 210mm ) |
| Warranty | 2 Years warranty |
Support
|
DRIVER MOTHERBOARD VURRION ALL SERIES
Versi Support Windows 7 , Windows 8 , Windows 10 , Windows 11 - - |
|
